About This

• Heavy-Duty Aluminum Construction: Crafted from seamless aerospace-grade aluminum alloy with 10mm thickened walls (9.68mm actual), this industrial-strength filter withstands 5800 PSI pressure while featuring anti-slip texture for secure grip and scratch resistance.

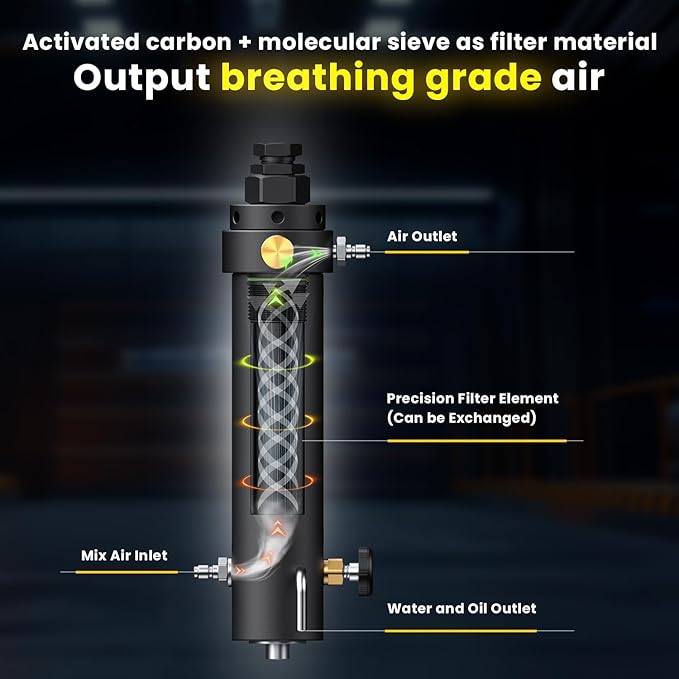

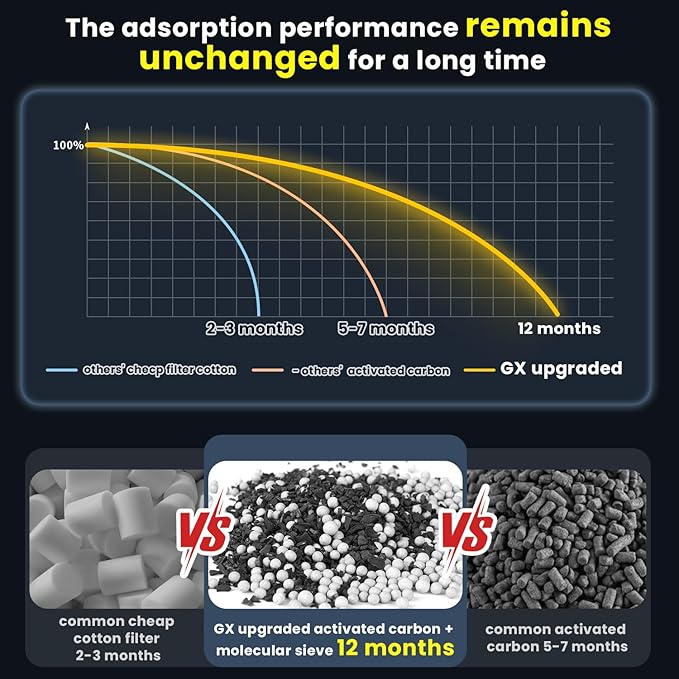

• Ultra-Efficient Filtration System: Dual-layer purification with activated carbon + molecular sieves removes 99% of oil, water, and microparticles (down to 0.01μm), delivering clean air output to protect your PCP rifles from moisture damage.
• Universal Compatibility :M10×1 thread & 8mm quick-connect design works flawlessly with GX pumps (CS1/CS2/CS3/CS4-5K), and other brands 95%+ PCP compressors. No adapter needed!

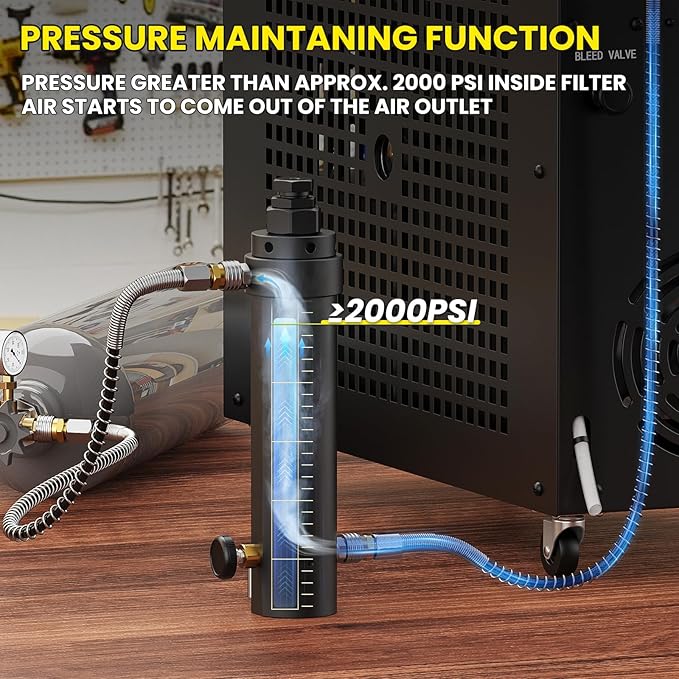

• Pressure Maintaining Function: It is our patent design. It initiates air supply to the pcp tank only when the pressure reaches about 1800- 2000 psi. This feature enhances oil-water filtration efficiency. Pro Tip: Always connect compressor hose to "INLET" port.

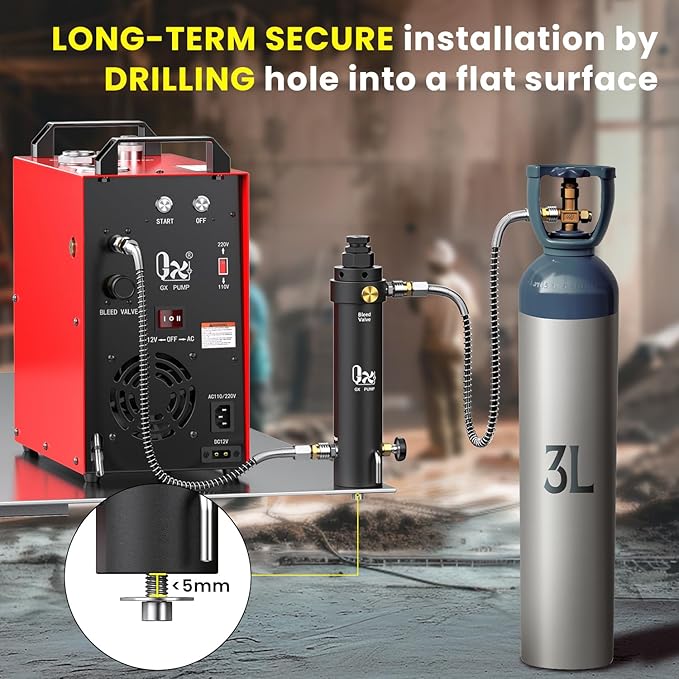

• Two Mounting Choices: 1, Secure Magnetic Mounting: The filter's side panel features three pre-drilled screw holes. Simply install two included industrial-strength magnets (screws provided) for ultra-stable adhesion to your compressor body. 2,Drilling and Screw Fastening： The filter base is equipped with a hex screw that can be used to drill holes on surfaces with a thickness below 5mm for long-term secure fastening. Of course, you can also use it flat on your desktop.

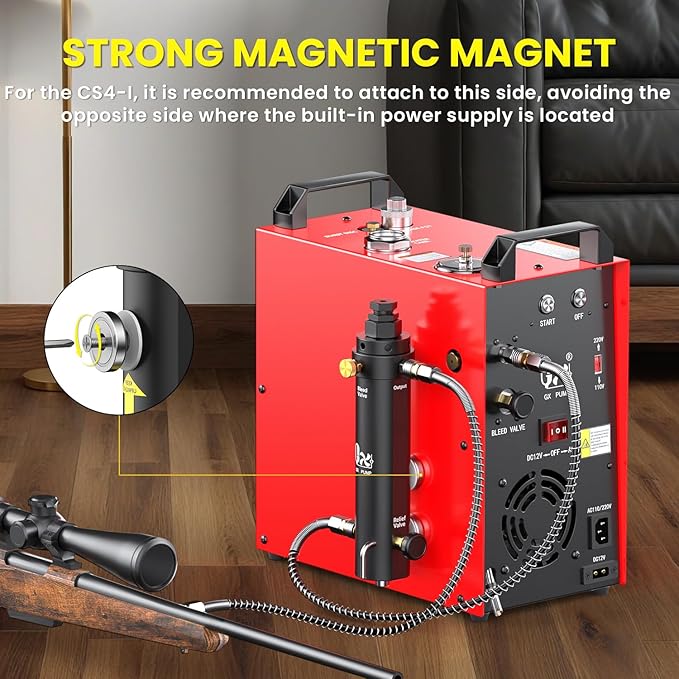

• Notice: When used with CS3-I or CS4-I models equipped with built-in converter, strong magnets may interfere with the power components. It is recommended to keep magnets clear of the built-in converter area. Refer to pictures which showing the area. For CS4-I, you can also attach to another compressor side without converter. For CS3-I, you can choose the bottom 2 magnet mounting holes.

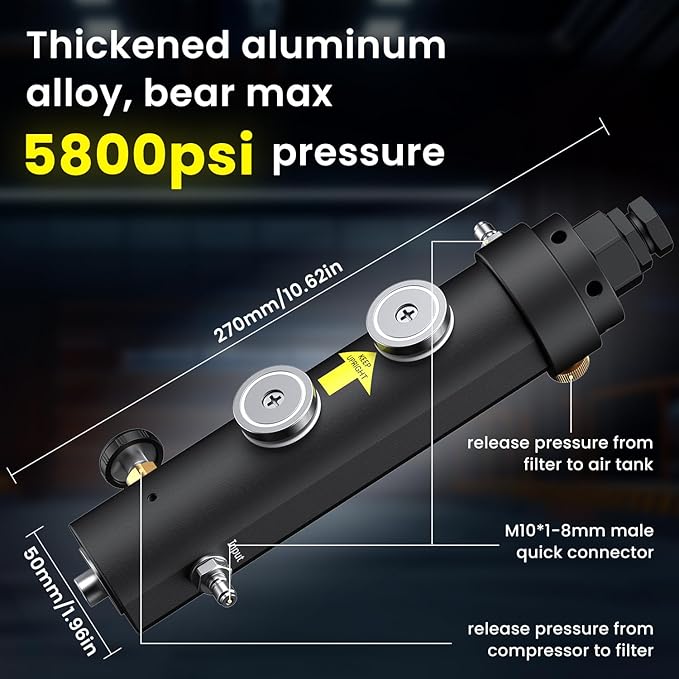

• Features a dimension of 260mmx50mm (10.23"x1.97") with 9.68mm wall thickness and 50mm outer diameter, coupled with a 21.65-inch hose. Designed for PCP compressors . The set includes a GX filter, hose, 5 replacement cottons, and a spare filter element (plus one pre-installed), ensuring extended usage. For future replacements, search ASIN: B0FKB8M7WR.
• Notice: Do not loosen the small nut at the top, which is a nut set before leaving the factory and is used to set the output pressure of the pressure-maintaining valve. In the future, you only need to remove the large nut with holes to replace the filter element or filter material.

Overview

• Brand : GX pump
• Recommended Uses For Product : pcp compressor filter
• Power Source : no
• Special Feature : Portable
• Included Components : hose, filter, replacement filter element
